Heavy-Duty Multi-Drive Workbench
Choose Your Perfect Power & Stability

Core E2
100% manual, reliable workbench with automatic caster-to-foot stability.

Core E2 Plus
Ergonomic smart workstation featuring effortless motorized height adjustment

Core E2 Max
Ultimate heavy-duty 4-post frame with powerful synchronized lifting.

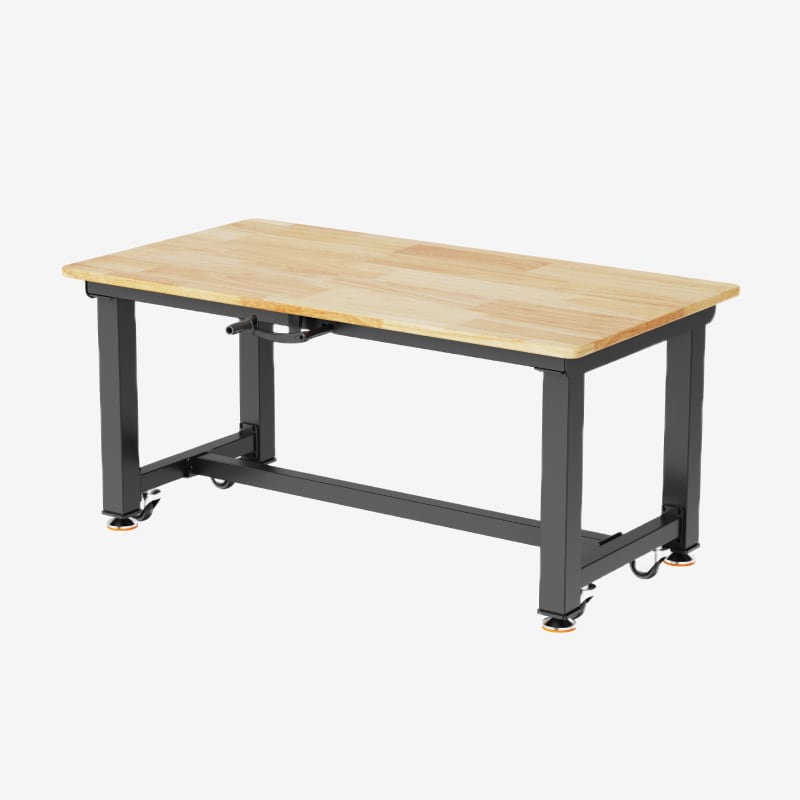

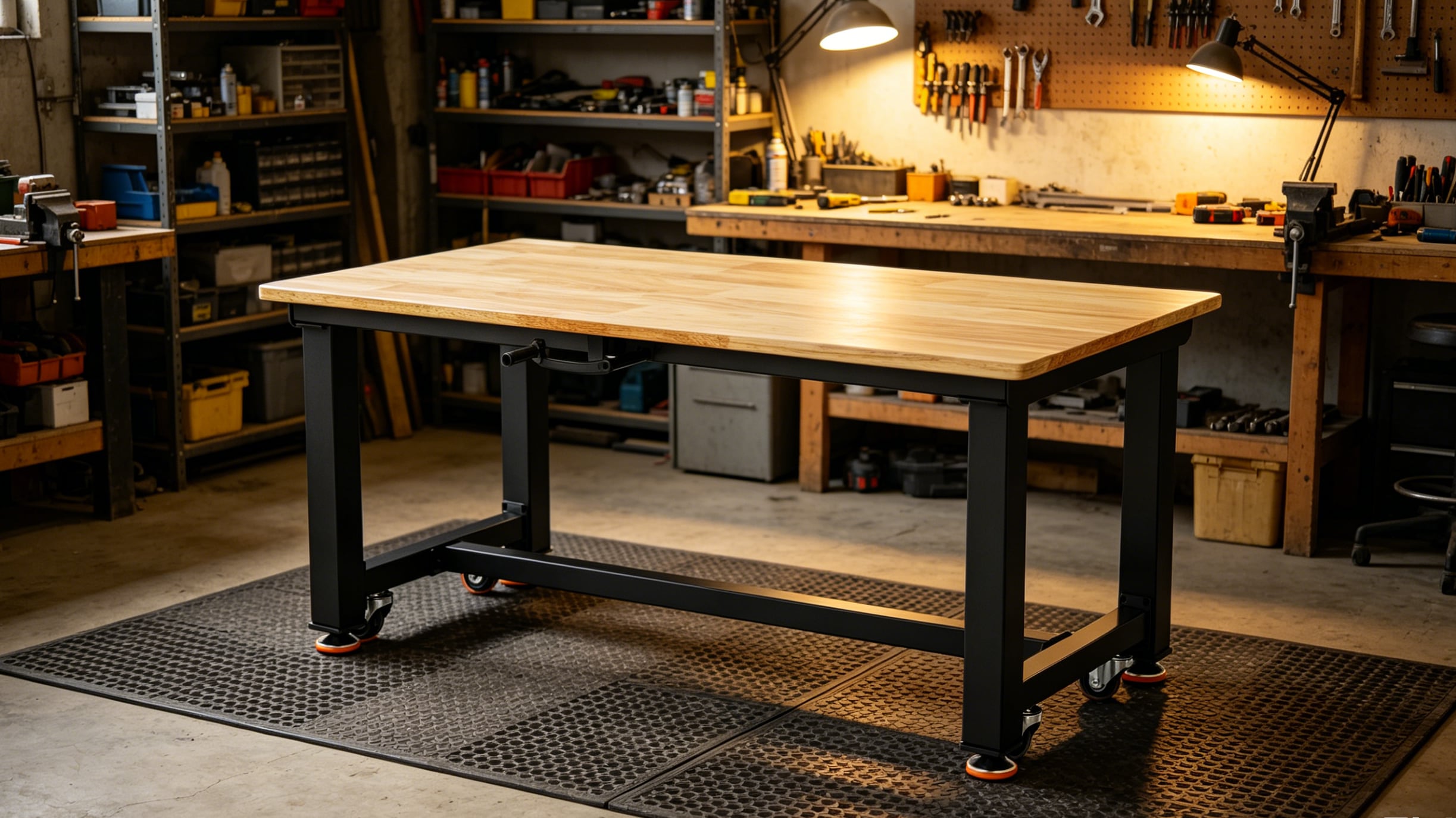

Core E2
Elevating the bench lifts the casters off the ground, transferring the load directly to the solid steel legs. It stays rock-solid during heavy hammering or drilling without wobbling. Lowering it engages the smooth-rolling casters for effortless relocation.

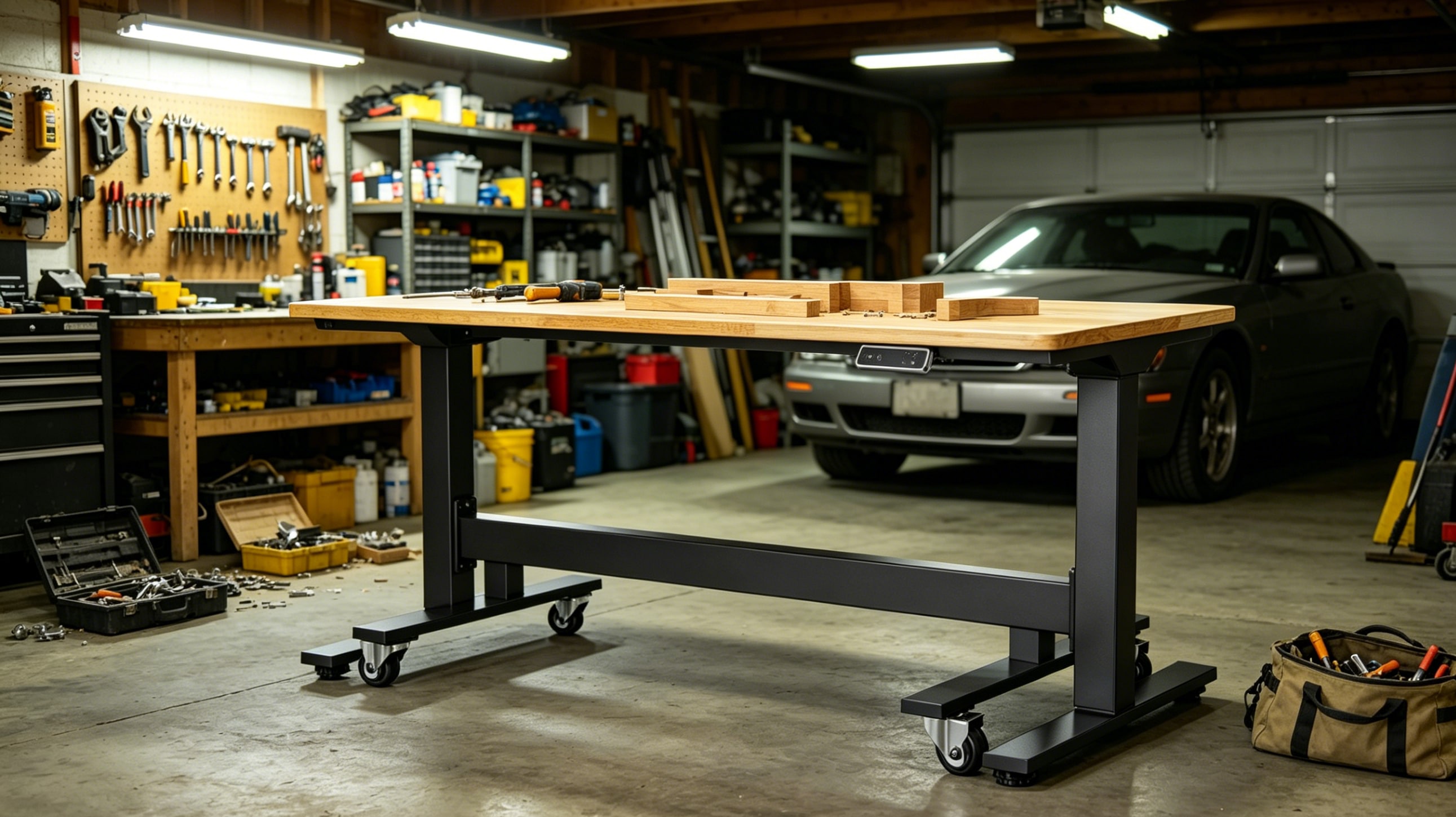

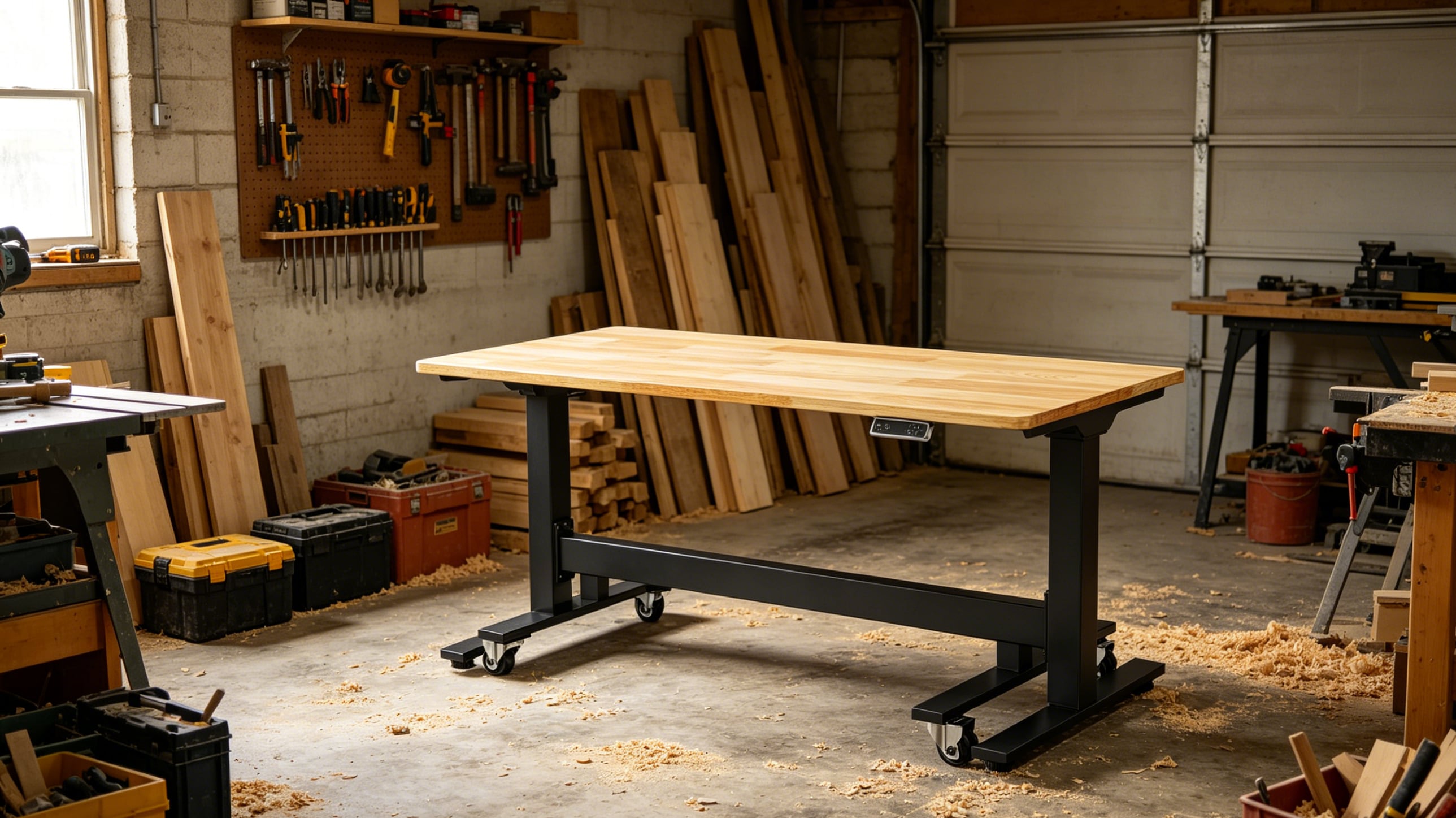

Core E2 Plus
Replaces the manual crank with a smooth, motorized lifting system. Transition from sitting to standing in seconds with a simple button press, bringing modern ergonomic comfort to your workspace.

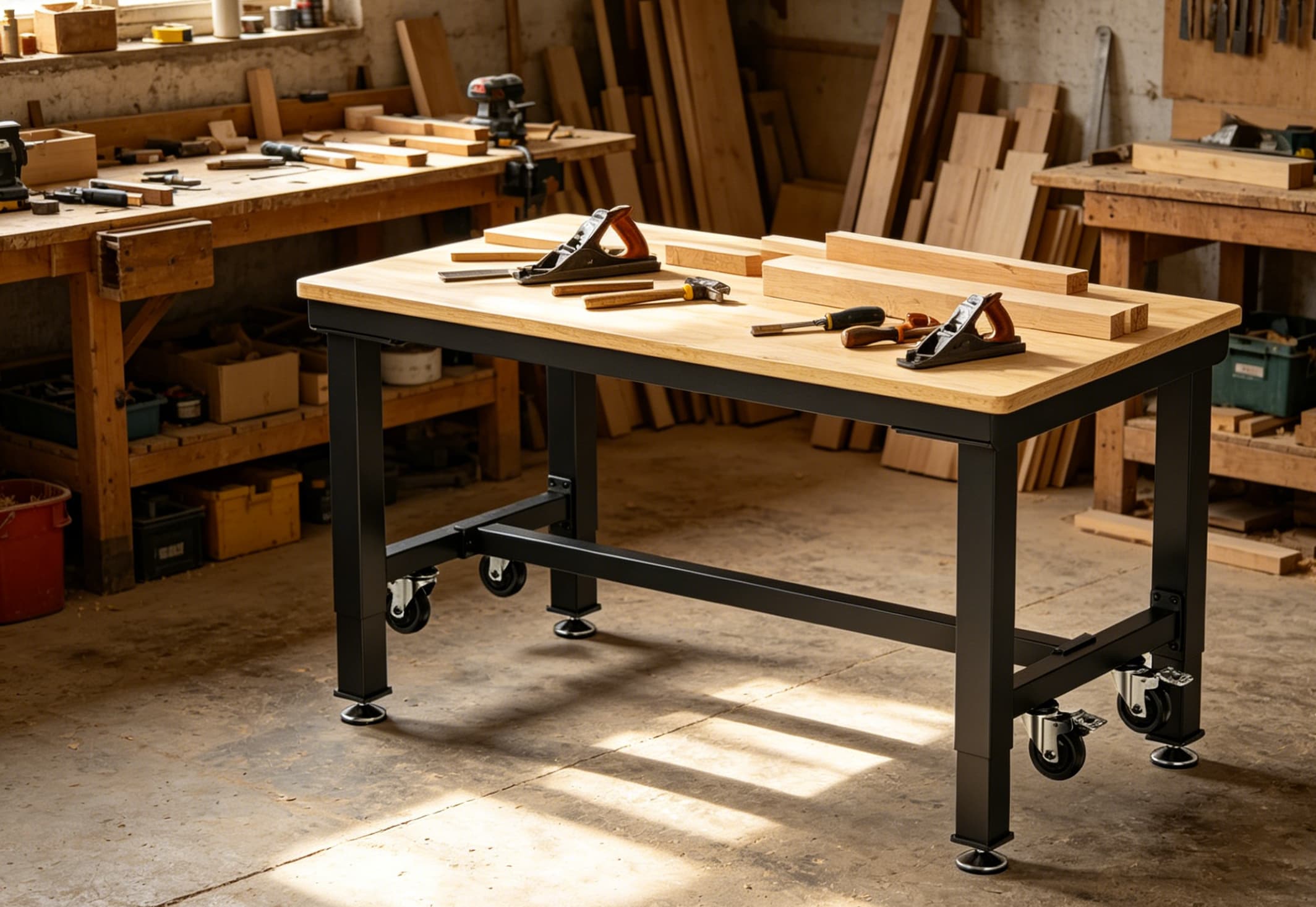

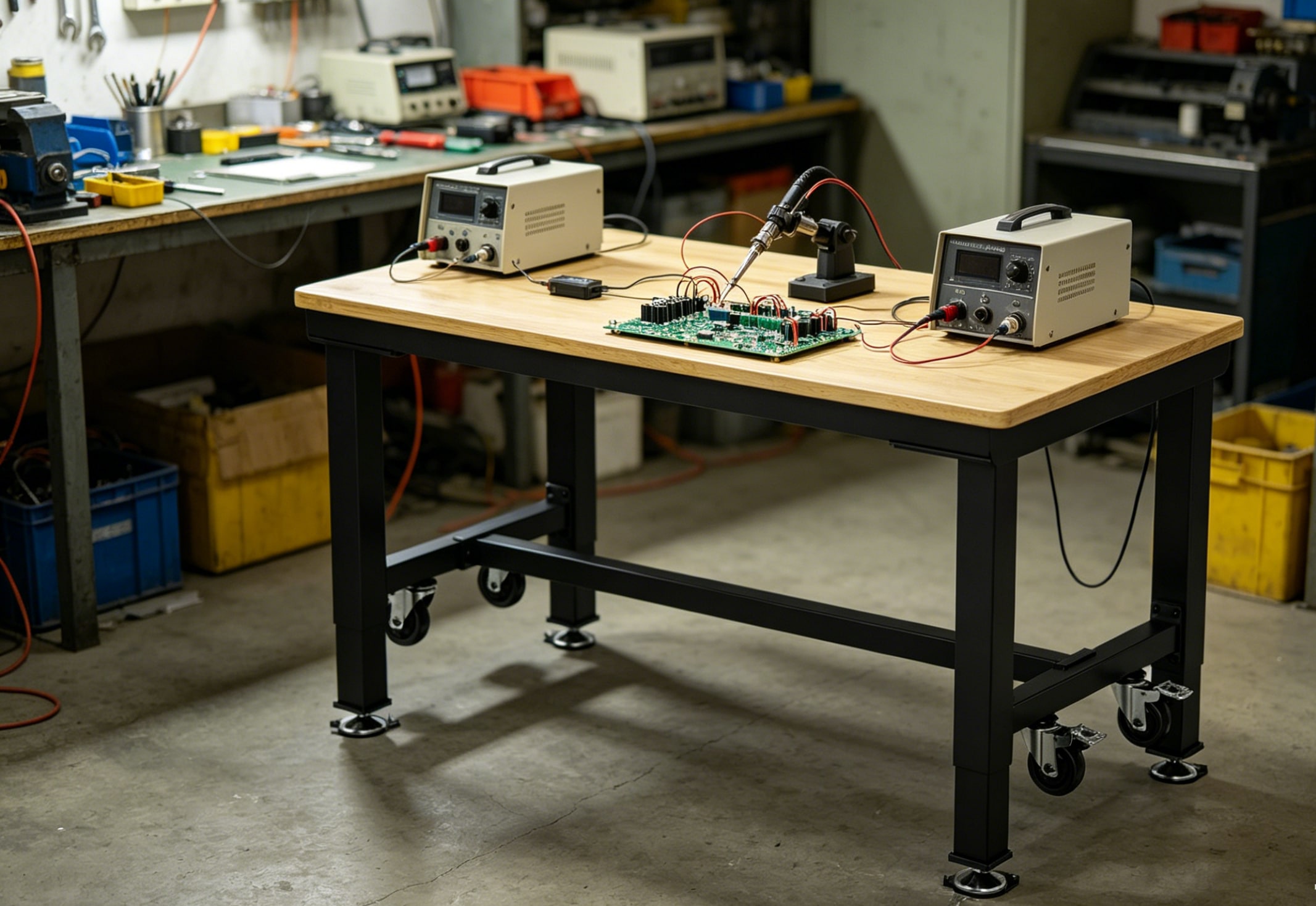

Core E2 Max
Combines the immense structural stability of a 4-leg frame with motorized convenience. It eliminates lateral shaking during high-torque, heavy-duty industrial tasks, ensuring professional-grade precision.
Product Overview
Basic information and available configurations of the workstation system.

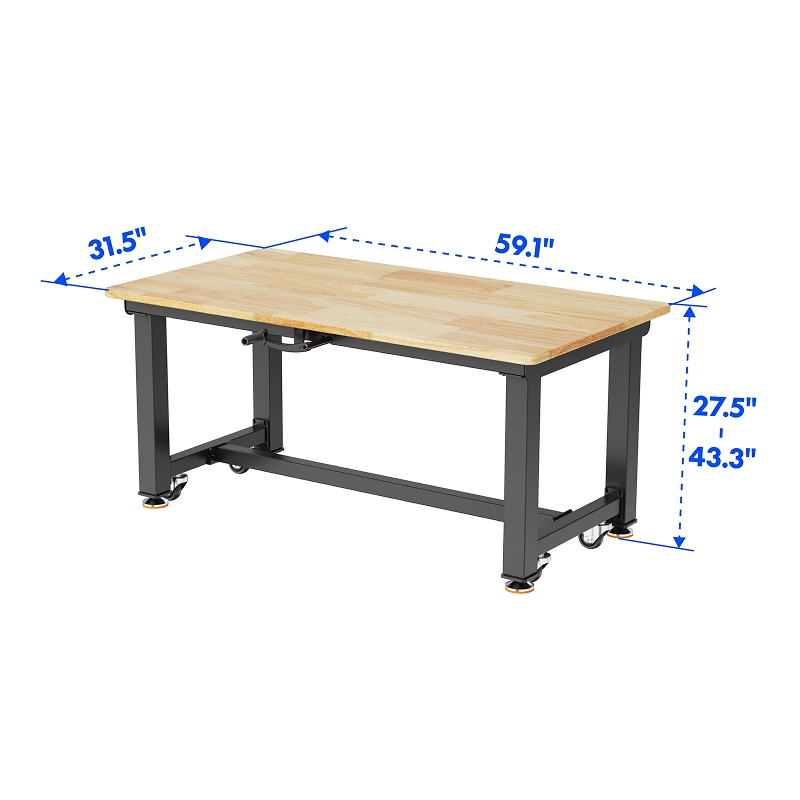

Core E2
| Drive Configuration | Manual |
| Weight Capacity | 661 lbs |
| Product Dimensions | 59.1" x 31.5" x [27.6" - 43.3"] |
| Adjustment Range | 15.7" |
| Lifting Speed | 0.3"/turn |
| Control Type | Manual Hand Crank (No Control Keypad) |
Shipping & Packaging Info
| Box 1: Tabletop | 33.8" x 2.4" x 64.2" (G.W/N.W : 53.6lbs/43lbs) |
| Box 2: Leg Columns | 58.1" x 14.6" x 8.7" (G.W/N.W : 71.7lbs/61.7lbs) |

Core E2 Plus
| Drive Configuration | Dual Motor |
| Weight Capacity | 1102 lbs |

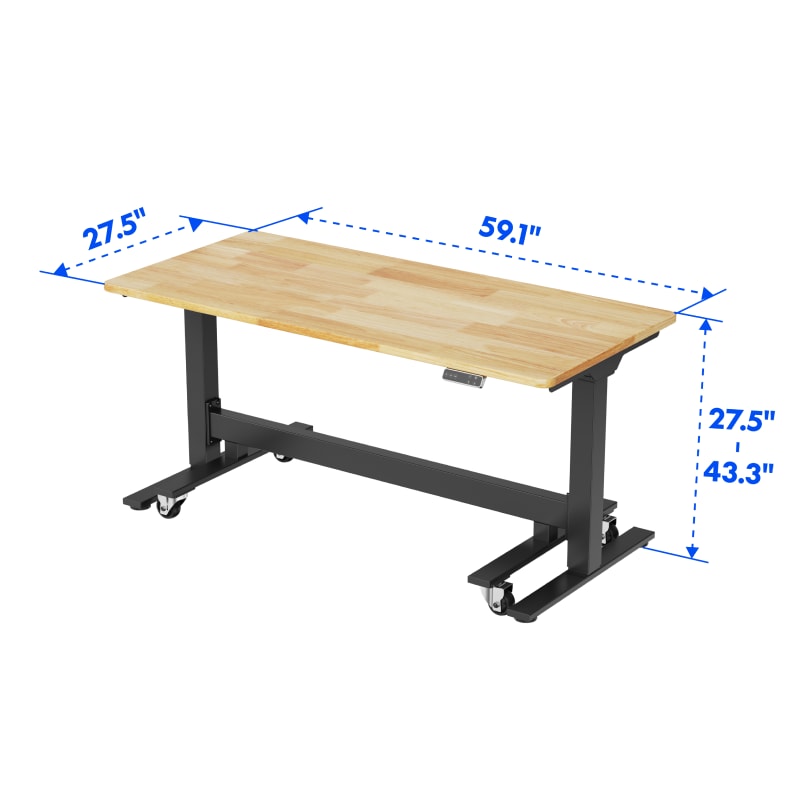

| Product Dimensions | 59.1" x 27.6" x [27.6" - 43.3"] |
| Adjustment Range | 15.7" |
| Lifting Speed | 0.4"/s |
| Control Type | 7-Button Digital Keypad |
Shipping & Packaging Info
| Box 1: Tabletop | 29.8" x 2.4" x 64.2" (G.W/N.W : 46.5lbs/37.5lbs) |
| Box 2: Leg Columns | 29.6" x 2.4" x 64.2" (G.W/N.W : 78.3lbs/66.1lbs) |

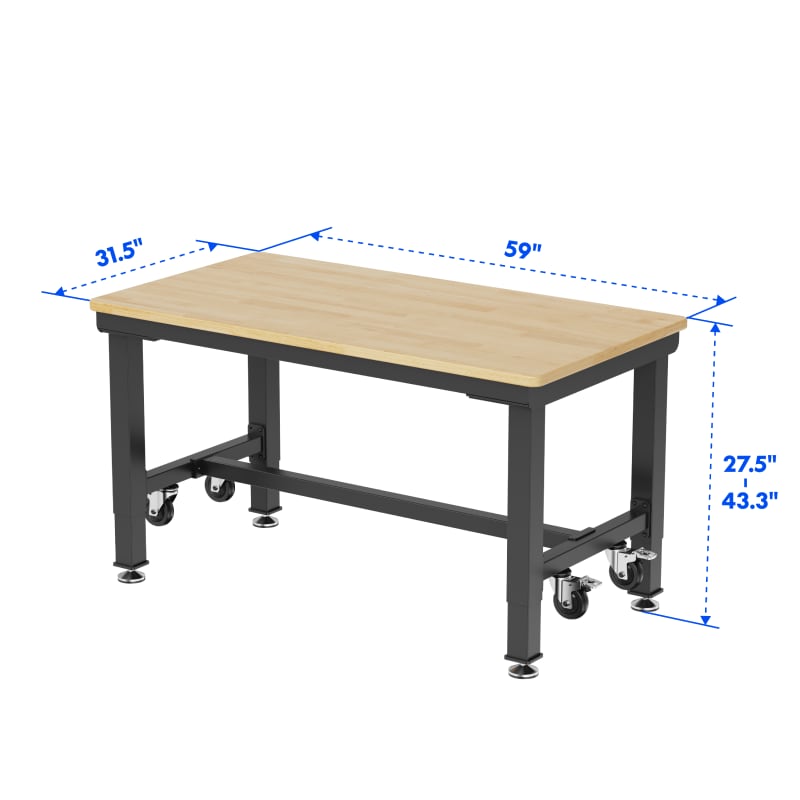

Core E2 MAX
| Drive Configuration | Dual Motor |
| Weight Capacity | 661 lbs |
| Product Dimensions | 59.1" x 27.6" x [27.6" - 43.3"] |
| Adjustment Range | 15.7" |
| Lifting Speed | 0.4"/s |
| Control Type | 7-Button Digital Keypad |
Shipping & Packaging Info
| Box 1: Tabletop | 33.8" x 2.4" x 64.2" (G.W/N.W : 46.5lbs/37.5lbs) |
| Box 2: Leg Columns | 31.5" x 30.7" x 8.9" (G.W/N.W : 70lbs/66.1lbs) |
| Box 3: Crossbar | 5.5" x 4.1" x 58.1" (G.W/N.W : 48.5lbs/44.1lbs) |
