Why Do Office Chairs Have Five Wheels? The Engineering Behind the Design

Why Do Office Chairs Have Five Wheels?

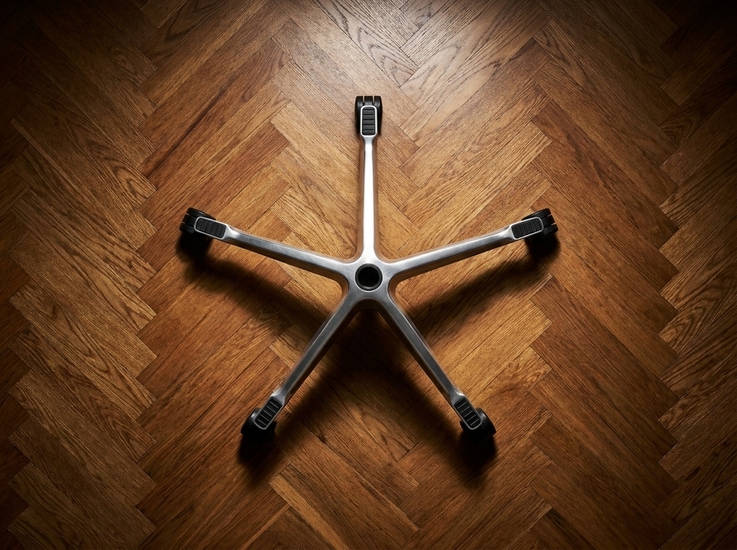

Take a look at an office chair. Five arms extend from the central base, each ending in a caster assembly. This is the five-point base commonly found on rolling office chairs, often described as having five wheels.

Why not three, like a stool? Why not four? And if adding support points can improve the support geometry, why not six or eight?

There is no single engineering rule that explains the design. It comes from a mix of geometry, everyday usability, and the way product designs become established over time. A chair needs a base that supports its weight, resists tipping when someone shifts position, and still allows the chair to roll and swivel.

To understand why five-point bases are so common, it helps to start with a simpler question: what makes any chair stable in the first place?

Stability Depends on the Support Area

Imagine looking at a chair from directly above. Draw imaginary lines between the points where its casters contact the floor. These lines enclose a region called the support polygon, which defines the chair's support area in this simplified model.

Now imagine a vertical line running down from the combined center of gravity of the chair and the person sitting in it. As long as that vertical projection stays inside the support polygon, the chair can remain in static equilibrium, assuming no other destabilizing forces dominate.

If the projection moves beyond the edge of that polygon, the chair may begin to tip.

This is why a chair can feel perfectly stable when someone sits upright but become less stable when that person leans far to one side. The person's center of gravity shifts, changing how close the chair is to the edge of its support polygon.

The size and shape of that polygon matter. So does the location of the center of gravity. A wider base can provide more room for the center of gravity to move before reaching an edge, but width alone does not guarantee stability in every direction.

Three non-collinear support points are enough to define a triangular support area. But the fact that three points can provide stable support does not mean that every three-point base offers the same margin against tipping. The size and shape of the support area matter, especially when a seated person's center of gravity shifts.

This is a simplified static model. A rolling office chair also responds to caster orientation, movement, and other forces, so the support polygon alone cannot predict every tipping scenario.

Why Five Support Points?

Three support points can provide a stable foundation, so three legs are not inherently unsuitable for a chair. The question is how much room the base leaves for the user's center of gravity to shift as the person changes position.

To see how the support polygon changes as points are added, imagine four, five, or six support points arranged evenly around a central post, each the same distance from the center. Three points form a triangle, four form a square, five form a pentagon, and six form a hexagon. As the number of evenly spaced points increases, the polygon approaches a circle. So does the distance from the center to the nearest edge.

We can describe that distance with a simple geometric formula:

r =R cos (π / n)

Here, R is the distance from the center to each support point, and n is the number of evenly spaced support points. The value r is the distance from the center to the nearest edge of the regular polygon.

You do not need to memorize the formula. The useful part is what the numbers tell us.

The comparison between four and five support points is especially revealing. With the same distance from the center to each support point, a five-point base increases the distance from the center to the nearest edge by about 14.4% compared with a four-point base. This gives the base a larger geometric support margin around its center.

--altImgStart--{"link":"https://s3.springbeetle.com/prod-us2-bucket/office-chair-base-support-polygon-diagram_20261013_gW6He9Zl.png","alt":"Clean geometric diagram comparing 4-point and 5-point office chair base layouts and support polygons."}--altImgEnd--

That margin matters in a chair designed to roll, swivel, and accommodate changes in sitting position. Unlike a fixed dining chair, an office chair must support a person as the seat moves and body weight shifts. A five-point base provides a useful combination of support in multiple directions and a footprint suited to a mobile chair.

--altImgStart--{"link":"https://s3.springbeetle.com/prod-us2-bucket/office-chair-support-polygon-geometry-diagram_20261013_XuV2P354.png","alt":"Geometric diagram comparing 3-point, 4-point, and 5-point office chair support polygons and center-of-gravity stability margins."}--altImgEnd--

Adding a sixth support point improves the geometric margin further, but the gain in this model is about 7.0% compared with five points, less than the gain from four to five. It also requires another support arm and caster assembly. For a general-purpose rolling office chair, five points therefore offer a practical balance: a larger geometric support margin than four points, without adding the sixth support assembly. Six-point bases can still make sense for chairs designed around different load or structural requirements.

This explains why five points are a sensible arrangement for rolling office chairs. It does not mean that every five-point chair is safer than every four-point or six-point chair. The actual result still depends on the base's dimensions, the chair's center of gravity, caster positions, and the forces acting on it.

How Chair Bases Evolved Over Time

The engineering case for five points becomes clearer when we compare the support geometry. Historical patents offer another perspective: they show how chair-base designs and construction methods evolved over time.

A U.S. patent granted in 1949 addressed a practical problem with caster placement: hardware extending beyond the ends of chair legs could scuff or soil the user's shoes. It offers an early example of designers refining the details of rolling chair bases.

A patent filed in 1968 and granted in 1970 described three- and four-leg arrangements as normal practice for office and similar swivel chairs at the time. This provides a snapshot of the configurations used in office seating during that period.

A six-leg base was also developed for specialized applications. A U.S. patent granted in 1998 described a six-leg pedestal base designed to support a chair user weighing up to 500 pounds under normal, continuous commercial or industrial use. This example shows how a different support arrangement could address particular load requirements.

A patent filed in 2001 and granted in 2003 described five-legged office chair bases as conventional. It also illustrates how manufacturers continued to refine the established design, proposing an integrated caster-mounting structure to reduce separate components and simplify production.

--altImgStart--{"link":"https://s3.springbeetle.com/prod-us2-bucket/modern-metal-office-chair-base-mechanism_20261013_6yOqgiR4.png","alt":"Close-up shot of a heavy-duty metallic five-star office chair base and central gas lift cylinder."}--altImgEnd--

Base, Casters, and the Parts That Move

The five arms of an office chair form its base. The rolling assemblies attached to those arms are the casters.

Many office chair casters contain two small wheel discs side by side. People often call them five wheels, but the chair actually has five caster assemblies, each of which may contain two wheel discs.

What Wheel Count Cannot Tell You

The number of support points is only one part of a chair's design. The casters also need to suit the floor. Carpet can increase rolling resistance, while hard floors may require office chair caster replacements designed to help protect the surface. The right choice depends on the floor, the caster's construction, and the manufacturer's recommendations.

Modern workplace guidance also recommends five-point bases as a feature to consider when selecting an office chair. The National Institutes of Health recommends a chair with casters and a five-point base to ease movement and minimize possible tipping. The Canadian Centre for Occupational Health and Safety also identifies a stable five-point base as a recommended feature when assessing chair stability.

When comparing office chairs, look beyond wheel count. Base dimensions, caster design, floor conditions, and the chair's overall construction all affect how it performs in everyday use. When evaluating these mechanics in person or browsing through a collection of ergonomic office chairs, checking the build quality of the base is a reliable way to gauge overall durability.

Five wheels are a useful clue to the design of a rolling office chair. They are not a complete measure of its quality.

A Small Design With a Longer Story

Five-point bases are common on rolling office chairs because they offer a practical balance between support geometry and construction. In an equal-radius model, five points provide a larger center-to-edge distance than four, while adding a sixth point brings a smaller further gain and requires another support assembly.

The historical record shows that five-legged bases became an established feature of office seating. Their prevalence is best understood through the combination of a useful geometric arrangement, the demands of a mobile chair, and the practical decisions involved in product design.

Frequently Asked Questions

1. Why do most office chairs have five wheels?

Five-point bases offer a useful balance between support geometry and practical construction. Compared with four points, they provide a larger center-to-edge distance in an equal-radius model, while avoiding the additional support assembly required by a six-point design. Five-point bases also became an established feature of modern office seating.

2. Why do office chairs have five legs instead of four?

With the same distance from the center to each support point, a five-point base has a larger center-to-edge distance than a four-point base. This provides a greater geometric support margin for a chair whose user may shift position as the seat swivels or reclines. A four-point base can still work, but five points offer a practical balance for a mobile office chair.

3. Do office chairs have five wheels or five legs?

Most rolling office chairs have five arms extending from the central base, with one caster assembly attached to each arm. Many caster assemblies contain two wheel discs, so a chair can have five caster assemblies but ten visible wheel discs.

4. When did office chairs start using five-point bases?

The records discussed here point to different moments rather than a single starting date. A patent filed in 1968 described three- and four-leg arrangements as normal practice, and a patent filed in 2001 described five-legged bases as conventional. The design was therefore already established by the early 2000s.

5. Do more wheels make an office chair more stable?

Not necessarily. More support points can improve the support geometry in a simplified model, but they do not automatically make a chair more stable. Base dimensions, caster placement, center of gravity, and the forces acting on the chair all affect stability.

6. Does a five-point base guarantee that an office chair will not tip over?

No. A five-point base can help provide a stable support arrangement, but it cannot prevent tipping in every situation. The outcome also depends on the chair's dimensions, center of gravity, caster positions, and how the chair is used.

Sources

U.S. Patent Office. US2490210A, Chair Base. Filed 1945, granted 1949. Description of radial chair legs and caster arrangements.

U.S. Patent Office. US3528635A, Leg Construction for Chairs and the Like. Filed 1968, granted 1970. Reference to three- or four-leg arrangements as normal practice at the time.

U.S. Patent Office. US5752684A, Pedestal Chair Base. Filed 1994, granted 1998. Describes a six-leg pedestal base designed for higher load requirements.

U.S. Patent Office. US6626404B2, Chair Base. Filed in 2001 and granted in 2003. Describes five-legged chair bases as a conventional design and discusses manufacturing improvements.

National Institutes of Health (NIH). Ergonomic Chair. Recommends a chair with casters and a five-point base to ease movement and minimize possible tipping.

Canadian Centre for Occupational Health and Safety (CCOHS). Working in a Sitting Position – Work Chairs. Lists a stable base with five legs among the features to look for when selecting a work chair.
